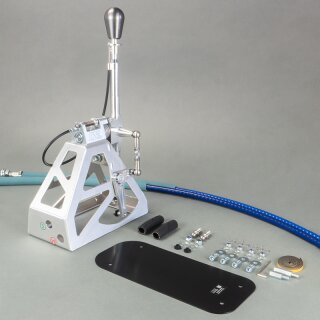

CAE Ultra Shifter for Golf MK1 equipped with a VW 02A or 02J cable gearbox.
02J GEARBOX ONLY FOR OLDER VERSION WITH EQUAL CABLE LENGTH
if your cable have different length choose the 02M Shifter
- Short and super-precise shifting travel, exclusively H-pattern and suitable for 5- and 6-gear transmissions.
Surface Alu uncoated; for black anodized choose 100 EXS
- The clutch system remains in its original form.
- Racing-style appearance.
Surface Alu uncoated
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.
- Shifters is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever.
Choose your gear lever knob by the following variations:
anodized aluminium in grey, blue, red, silver, orange; or in Plastic (POM) white or black
optional against extra charge wrapped with grey alcantara and blue or red X-seam
|Total height:||approx. 500 mm|
|Total length:||approx. 220 mm|
|Dimensions of base plate:||approx. 180 x 130 mm|
|Shifting travel:||approx. 65 mm|
|Selector travel (transverse direction):||approx. 65 mm|
|Weight (complete):||approx. 3,3 kg|
|Offset of the gear lever knop (back / up):||approx. 60 / 200 mm|
After the conversion, the gearshift cables run via the tunnel. This requires drilling into the firewall. Shifter is delivered as a complete kit including CAE HD gearshift cables. Optimal adapted for 02A transmission in which the gearshift cables arrive side by side on the transmission. 02A transmission with gearshift cables, which lie one above the other must be converted to the other version! Find the suitable gearbox cable bracket (10113WID) under "Accessories" (see below).
Delivery: Shifter completely assembled, CAE HD gearshift cable, all screws and small parts.
Installation Manual for download you will find here behind the "PDF" tab
All CAE Ultra Shifters and tuning products are designed exclusively for motor sports and not permitted for public road traffic !
