CAE Shifter Subaru WRX STI 2002-2007 STREET ELOX SW

Item number: 10087 ST EXS

CAE Shifter Subaru  WRX STI  6 Speed STREET

Surface Alu uncoated

Category: SUBARU

gear knob variation (please select)

1.258,00 €

including 19% VAT. , plus shipping

Available now!

There are variations of this item. Please select the variation you wish.

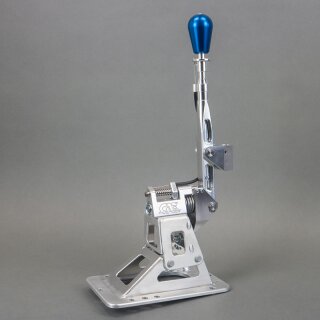

CAE Ultra Shifter - Optimised for motor sports with the following features:

  • Street Version with 2-piece housing and optimized Shift Rod for using with complete center console !
  • Surface Alu uncoated; for black anodized Choose 10087-ST EXS
  • Shifter Kit for "STI" with 6 speed manual transmissions, H-pattern. With our 10087ADP5G also fitting for 5 Speed, gearbox uses the internal reverse lock out then
  • "Street Version" wit 2 piece housing and optimized Shift rod designed for coplete Interior use
  • Short and super-precise shifting travel, exclusively H-pattern.
  • The clutch system remains in its original form.
  • Racing-style appearance.
  • Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
  • Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
  • Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
  • Problem-free shifting of gears under stress or in curves.
  • Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
  • Right/left stops and reverse gear stop adjustable separately.
  • Complete kit for adaptation stock shift rod with all small parts, fastening material and detailed installation instructions.
  • centre console have to be slightly modified fo installation
  • choose gear lever knob in the following colours: titanium grey , blue, red, silver, orange or plastic black or white
Total height: approx. 435 mm
Total length: approx. 240 mm
Dimensions of base plate: approx. 198 x 124 mm
Shifting travel: approx. 65 mm
Selector travel (transverse direction): approx. 65 mm
Weight (complete): approx. 2,1 kg
Offset of the gear lever knop (back / up): depending on vehicle type approx. 30 / 80 mm

Delivery: Shifter completely assembled, special shift rod, all screws and and required small parts

Installation instructions her for download behind the PDF Tab

ATTENTION
All CAE Ultra Shifters and tuning products are designed exclusively for motor sports and not permitted for public road traffic !

EBA Subaru 10087ST

Installation Manual 10087ST 6 Speed


CAE Shifter Type: H-Pattern shifted
Brand: SUBARU
Transmission: 6 Speed Gearbox
Product weight: 2,0 Kg
