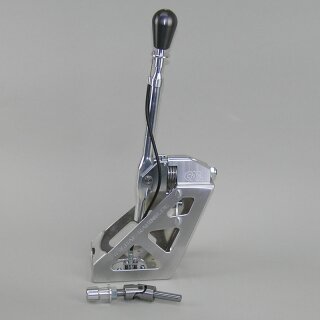

CAE Ultra Shifter Honda CIVIC TYPE R
CAE Ultra Shifter for Honda Civic Type R FK8
CAE Ultra Shifter - Optimised for motor sports with the following features:
- Short and super-precise shifting travel, exclusively H-pattern
- The clutch system remains in its original form.
- Racing-style appearance.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel.
The shift pattern is confined to approx. 65 x 65 mm. - Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: All systems are delivered with all small parts, fastening material and detailed installation instructions.
- Shifters is intended for vehicles with interior/centre console and make use of the mounting points and cables of the original shift lever
CENTER CONSOLE HAS NOT TO BE MODIFIED; The original shift cable end pieces interior-side must be cut off, connecting pieces for possible retrofitting are included in delivery - Surface and shift knob selectable in different versions
- EDITION RED with red applicationson Shift lever. Available Knob colors: Grey; Black; White; Silver; Red
| Total height: | approx. 480 mm |
| Total length: | approx. 300 mm |
| Dimensions of base plate: | approx. 145 x 300 mm |
| Shifting travel: | approx. 80 mm |
| Selector travel (transverse direction): | approx. 80 mm |
| Weight (complete): | approx. 1,35 kg |
| Offset of the gear lever knop (back / up): | approx. 0 / 145 mm |
Delivery: Shifter completely assembled, all screws and small parts.
Installation Manual for download you will find here behind the "PDF" tab
This CAE Ultra Shifter has papers for Germany, please inform yourself at the car registration office in your country about street legality.
If you would like to have your Shifter with german TÜV Papers, please contact us in parallel with the purchase !!!
10FK8 Honda Civic Type R FK8_6 Gang Einbauanleitung_12_2021.pdf
10FK8 Honda Civic Type R FK8_6 speed Installation Manual_12_2021.pdf
| Transmission: | 6 Speed Gearbox |
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | HONDA |
| Car-Model: | Civic FK8 Type "R" |
| Product weight: | 1,3 Kg |
