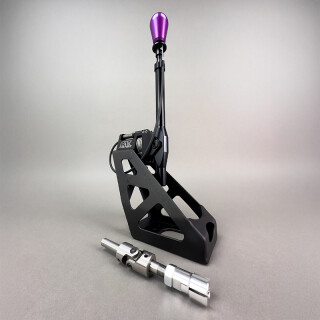

CAE Ultra Shifter - Optimised for motor sports with the following features:
- Short and super-precise shifting travel, exclusively H-pattern and suitable for 4- and 5-gear transmissions (for example Gene Berg).
- The coupling system remains in its original form.
- Racing-style appearance.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Simple installation through complete conversion kit: Shifter comes complete pre mounted with all required parts for installation
- the installation manual you will find for download at the bottom of this page Shifter is intended for vehicles without interior equipment or without a centre console and make use of the mounting points of the original shift lever
- Shift knob free selectable in different versions, optional against extra charge wrapped with grey alcantara with blue or red X-seam
Total height: approx. 430 mm Total length: approx. 220 mm Dimensions of base plate: approx. 130 x 80 mm Shifting travel: approx. 65 mm Selector travel (transverse direction): approx. 65 mm Weight (complete): approx. 0,65 kg Offset of the gear lever knop (back / up): approx. 50 / 200 mm
Delivery: Shifter, cardan joint rod with klamp, installation instructionsCAUTIONAlmost all shifters are available with german TÜV papers and are therefore street legalPlease ask before ordering
