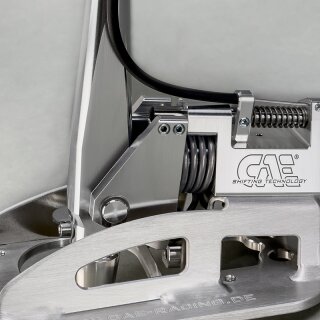

CAE Ultra Shifter für Toyota YARIS GR
NOW READY TO ORDER
Delivery from end of January 2021
- CAE Ultra Shifter for YARIS "GR" with 6 speed manual transmissions
- 2 Piece heousing for easy installation
- shifter fits to stock shiftcables
Short and super-precise shifting travel, exclusively H-pattern. - The clutch system remains in its original form
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 70 x 55
- The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- centre console have to be slightly modified for installation
Choose your gear lever knob by the following variations:
anodized aluminium in grey, blue, red, silver, orange; or in Plastic (POM) white or black
optional against extra charge wrapped with grey alcantara and blue or red X-seam
| Total height: | approx. 390 mm |
| Total length: | approx. 235 mm |
| Dimensions of base plate: | approx. 235 x 125 mm |
| Shifting travel: | approx. 70 mm |
| Selector travel (transverse direction): | approx. 55 mm |
| Weight (complete): | approx. 1,05 kg |
| Offset of the gear lever knop (back / up): | depending on vehicle type approx. 20 / 100 mm |
Delivery: Shifter completely assembled, all screws and small parts.
10084 Toyota Yaris GR Einbauanleitung
10084 Toyota Yaris GR Installation manual
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | TOYOTA |
| Model: | YARIS "GR" |
| Product weight: | 1,2 Kg |
