CAE Ultra Shifter FIAT 124 6-Speed
CAE Ultra Shifter for FIAT 124 Spide with 6 Speed Gearbox
- Short and super-precise shifting travel, exclusively H-pattern.
- The clutch system remains in its original form.
- Racing-style appearance.
- Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 55 mm.
- Activation of the reverse gear lock via cable reel from the shift lever. An accidental changing to the reverse gear is impossible. The reverse gear is unlocked by pulling up the sliding collar on the shift lever.
- Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy
- Problem-free shifting of gears under stress or in curves.
- Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
- Right/left stops and reverse gear stop adjustable separately.
- Complete pre mounted shifter for direct mounting to the gearbox with all small parts and fastening material.
- Shifters is intended for vehicles with Center console, it have to be modified sligthly

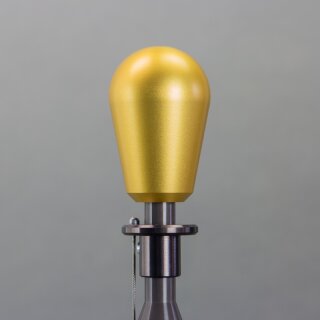

- Shift knob free selectable in different versions/ colors
Total height: approx. 300 mm Total length: approx. 130 mm Dimensions of base plate: approx. 120 x 85 mm Shifting travel: approx. 65 mm Selector travel (transverse direction): approx. 55 mm Weight (complete): approx. 1,05 kg Offset of the gear lever knop (back / up): depending on vehicle type approx. 0 / 100 mm
Delivery: Shifter completely assembled, all screws and small parts; Surface sealant.
Installation Manual for download you will find here behind the "PDF" tab ( coming Soon)
ATTENTION
please inform yourself at the car registration office in your country about street legality
German papers are available
10068 Fiat F124 6 Gang Einbauanleitung_112021.pdf
10068 Fiat F124 6 speed Installation Manual_112021.pdf
| Transmission: | 6 Speed Gearbox |
| CAE Shifter Type: | H-Pattern shifted |
| Brand: | Fiat |
| Surface: | Alu uncoated |
| Car-Model: | 124 Spider |
