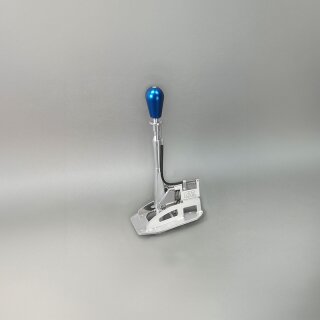

CAE Ultra Shifter Subaru WRX 5 Speed 08-`14 STREET

Street Version with 2-piece housing and optimized Shift Rod for using with center console !

• Optimized for "WRX" with 5 speed ROD Shifted manual transmissions, H-pattern.
• "Street Version" wit 2 piece housing and optimized Shift rod designed for complete Interior use, center console has to be modified slightly.
• Short and super-precise shifting travel, exclusively H-pattern.
• The clutch system remains in its original form.
• Characterised by its optimal ergonomics with a focus on motor sports: perfect positioning of the shift lever close to the steering wheel. The shift pattern is confined to approx. 65 x 65 mm.
• the reverse gear lock of the shifter is without function at 5 Speed Gearboxes, internal  lock out will prevent accidental engagement of reverse gear.
  ( Advantage: if you ever swap to 6 speed, you already have the right shifter)
• Low weight and high stability: the milled and lathed parts consist of 7075 aluminium alloy; the substructures are made out of laser-cut, 3 mm thick AlMg3 aluminium. The parts are combined in the WIG welding process and brushed blank for an optimal finish.
• Problem-free shifting of gears under stress or in curves.
• Integrated centre position spring, ensuring perfect feedback when changing columns while shifting up and down.
• Right/left stops and reverse gear stop adjustable separately.
• Complete kit for adaptation stock shift rod with all small parts, fastening material and detailed installation instructions.
• Shift knob free selectable in different versions/ Colors


• Total height:	approx. 435 mm
  Total length:	approx. 240 mm
  Dimensions of base plate:	approx. 198 x 124 mm
  Shifting travel:	approx. 65 mm
  Selector travel (transverse direction):	approx. 65 mm
  Weight (complete):	approx. 2,1 kg
  Offset of the gear lever knop (back / up):	depending on vehicle type approx. 30 / 80 mm

Delivery: Shifter completely assembled, special shift rod, Rod adaptor for 5 Speed Gearbox ;  all screws and and required small parts

Installation instructions her for download behind the PDF Tab

ATTENTION
All CAE Ultra Shifters are TÜV® approved and street legal; ; please aks for your certificate while ordering
More Infos: https://cae-racing.de/TUEV-Part-certificate

10088 Subaru ST Einbauanleitung_112021.pdf

10088 Subaru ST Einbauanleitung_112021.pdf

10088 Subaru ST Installation Manual_112021.pdf

10088 Subaru ST Installation Manual_112021.pdf
